Finding The Right Amplifier
Choosing the right amplifier for your audio setup is crucial to achieving the best sound quality possible. However, with so many options available on the market, finding the right amplifier can be a daunting task. In this article, we’ll guide you through the process of finding the right amplifier for your needs.
Take into account the power output needed for your application first. You must select a power amplifier that can deliver the amount of power necessary for your particular application because power amplifiers are rated in watts. For instance, you will probably require a higher power output if you use the power amplifier for a public address system rather than a small home theatre system.

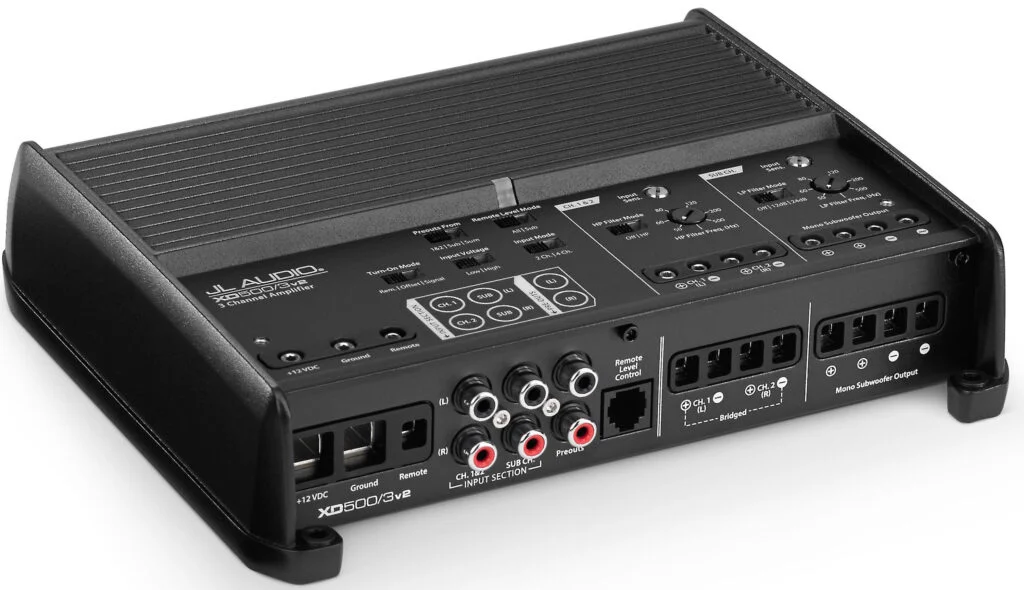

The connectivity options available are also crucial, and even though your intended uses (and the equipment you’ll be using) will ultimately determine this, it’s generally a wise decision to have one or two alternative options available.
RCA connections are one of the most popular amplifier connectivity options. RCA connections or phono connectors are frequently used to connect audio equipment to an amplifier, including CD players, turntables, and tape decks. The left-channel audio signal is typically carried by the white connector, while the right-channel audio signal is typically carried by the red connector.
XLR connections are another popular connectivity choice for amplifiers. Professional audio applications frequently employ XLR connectors, which are renowned for their high-quality audio transmission and low noise levels. Professional audio gear, including microphones and mixing consoles, frequently uses XLR connectors. Balanced audio sources are typically connected to amplifiers using these connectors.
The 1/4 inch TRS (Tip Ring Sleeve) connectors are a third option for connecting amplifiers. Commonly found on guitars, basses, and other instruments are these connectors. They can also be found on devices like audio interfaces, drum machines, and effects processors. Unbalanced audio sources are typically connected to amplifiers using 1/4-inch TRS connectors.
The USB port, which is frequently found on many computer audio interfaces, digital audio players, and some amplifiers, is a fourth option for connecting amplifiers. You can connect your digital devices to your amplifier using this type of connection to play digital audio files directly.
Many amplifiers offer additional inputs and outputs, such as speaker terminals, binding posts, and banana plugs, in addition to these standard connectivity options. You can quickly connect your amplifier to your speakers and other audio equipment, such as subwoofers and crossover networks, using these connectors.
In conclusion, it’s critical to consider the available connectivity options and which will be most effective for your particular application when selecting an amplifier. Many amplifiers offer the following connectivity options: RCA, XLR, 1/4 inch TRS, and USB. Banana plugs, speaker terminals, binding posts, and other types of inputs and outputs are common in amplifiers and can be used to connect your amplifier to other audio components.
Power amplifiers come in a variety of designs, including Class A, Class B, Class AB, and Class D. Each type has advantages and disadvantages of its own, and which one you select will depend on your unique requirements.
- Class A amplifiers are a good option for audio applications due to their high linearity and low distortion characteristics.
- Class B amplifiers are more effective but may have higher distortion levels.
- A compromise between the two, class AB amplifiers provides a balance of linearity and efficiency.
- High-efficiency Class D amplifiers are frequently found in portable and auto audio systems.
The amplifier’s signal-to-noise ratio should also be taken into account. The amount of noise in the output signal is measured, and it is typically done so in decibels. Less noise in the output signal results from a higher signal-to-noise ratio, which can be crucial for audio applications.
The amplifier’s input and output impedances are a crucial factor as well. The resistance that the amplifier presents to the input signal is known as the input impedance, whereas the resistance it presents to the load is known as the output impedance. To ensure maximum power transfer and guard against damage to the amplifier or other system components, it is crucial to match the amplifier’s input and output impedance to the input and output impedance of the signal source and load, respectively.
The amplifier’s distortion level is something else to take into account. Any difference between the amplified signal and the original signal is a distortion. Non-linearities in the amplifier’s transfer function, which can result in the output signal being different from the input signal, can lead to distortion. The better the amplifier, which can be expressed as a percentage, the lower the percentage.
The frequency response of the amplifier is another crucial factor to take into account. This gauges how well an amplifier can amplify signals at various frequencies. An amplifier’s frequency response should be as flat as possible, which means that all frequencies in the interest range should be amplified with an equal gain. Certain frequencies may be amplified more than others if the frequency response is not flat, which can cause distortion.
Finally, think about the amplifier’s size and price. The dimensions of power amplifiers can range greatly, from compact portable units to massive rack-mounted units. The required power output and the features you require will determine the size and price of the amplifier.
How much power will I need?
You must first take into account the maximum power handling capacities of the speakers you’re using and the desired output volume for your system in order to decide which power amplifier you need based on power handling. Once you have this knowledge, you can use it to determine the amplifier’s minimum power rating that you require. To ensure peak performance, the amplifier should be rated to deliver at least as much power as the speakers are capable of handling.
It’s important to note that the RMS (Root Mean Square) power handling is the standard measurement for speakers’ power handling. Instead of peak power handling, which refers to the amount of power that the speakers can handle for brief periods of time, this is the amount of power that the speakers can handle continuously without being damaged.
The amplifier should also be able to deliver the necessary power at the speaker’s impedance. The amplifier will have to work harder to produce the same amount of power as the impedance changes. Checking the amplifier’s power output at various impedance levels is crucial because of this.
Check out the calculator created by Crown Amplification to determine the necessary power handling specifications.
Which Amplifier Type Is Best for Me?
Although there are a number of all-purpose options available, you might need something more specialized depending on the type of amplifier you’ll need for a given application:
For TV, Stereo or Surround Sound
It’s crucial to take into account the number of speakers in your system, the size of your room, and the sound quality you want when choosing a home theatre amplifier. Additionally, you should search for features like HDMI support, integrated Bluetooth, and support for various surround sound formats.
Turntables also referred to as vinyl record players, need an amplifier known as a phono preamplifier or phono stage. This is due to how much weaker the audio signal from a turntable is compared to other audio sources like CD players or streaming devices. The level of the audio signal from the turntable is raised using a phono preamp so that it can be amplified and played through a set of speakers or headphones.
Phono preamps come in passive and active varieties. The most basic preamps are passive ones, which typically just have a resistive network. In contrast, active phono preamps boost the audio signal using active circuitry like an op-amp. Since they generate less distortion and noise and can offer more accurate equalization and RIAA correction, active phono preamps are typically preferable to passive ones.
The kind of turntable you have, as well as the sensitivity and impedance of your phono cartridge, should all be taken into account when choosing a phono preamp. Moving coil or moving magnet cartridges can be used with some phono preamps that have a switch to accommodate different cartridge types.
The signal from the turntable can also be amplified without an external phono preamp thanks to some amplifiers and AV receivers having built-in phono preamps. These built-in phono preamps might not be as good as a dedicated one, though.
When choosing a phono preamp, it’s important to take into account your desired audio system as a whole as well as the other components. Even though some high-end phono preamps have better sound quality, they are also more expensive.
Your amplifier needs are a little bit more straightforward when driving the stereo system in your car because connectivity options, impedance, and other technical specifications are typically less crucial. However, it’s important to think about the amplifier class:
Class A and Class D car amplifiers are the two primary varieties. Although less efficient and prone to producing a lot of heat, Class A amplifiers are renowned for their high-fidelity sound. Class D amplifiers may not sound as good as Class A amplifiers, but they are more effective and generate less heat. Additionally, car amplifiers can be purchased in mono, 2-channel, 4-channel, or multi-channel configurations. How many speakers you have in your car and how you want to set them up will determine the configuration you choose.
